- Model: WAKJ
- Origin: Hubei

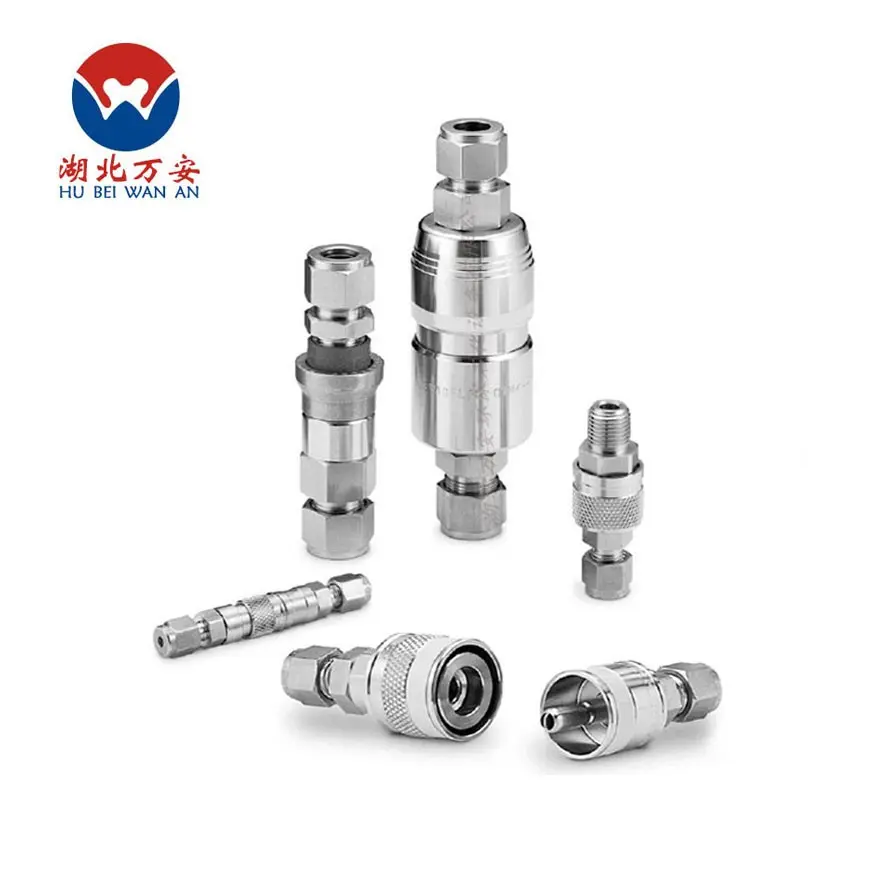

- Product Overview: Quick connector;
- Customized consultation: 027-81948788
summary:
Quick connector is a type of connector that can connect or disconnect pipelines without the need for tools. Quick couplings can be divided into: quick couplings for air, quick couplings for oxygen fuel gas, quick couplings for gas liquid sharing, quick couplings for oil pressurenoble gas.Using quick connectorscooling.Quick couplings and semiconductor quick couplings are used for water temperature and oil.
Classification by use
air type
Air quick connectorMainly used for rapid installation of air pipelinespneumatic toolThe connector accessories. Corresponding to its purpose, there are diverse body materials, sizes, and installation shapes available.
Precautions for use:
Please do not use for purposes other than fluids.
Please do not use for fluids other than the applicable fluid.
Do not exceed the maximum operating pressure when using.
Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.
Do not manually strike, bend, or stretch to prevent damage.
Do not use in areas mixed with metal powder or sand dust. Quick couplings can be used here to withstand harsh working conditions and ensure a long service life.
Attaching debris can cause poor performance or leakage.
Do not disassemble quicklyjoint。
Gases
Mainly used for universal fuse piping, it has the characteristics of high flow rate, durability, and corrosion resistance. The main body material, size, and installation shape are diverse and abundant.
Precautions for use:
Warning
The fluid must flow from the sleeve side to the plug side.
Please use sealing material for external threads with controlled threads.
When installing threads, please do not exceed the maximum tightening torque to prevent damage.
Please do not use for purposes other than quick fluid connections.
Please do not use for fluids other than the applicable fluid.
Please do not connect with quick fluid couplings produced by other companies.
Do not exceed the maximum operating pressure limit when using.
Do not use outside the temperature range to prevent wear or leakage of sealing materials.
Do not manually strike, bend, or stretch to prevent damage.
Do not use in areas mixed with metal powder or sand dust to prevent poor performance or leakage.
Attaching debris can cause poor performance or leakage.
Please do not use it in places where gas is trapped.
Please do not carry out loading and unloading operations when there is an open flame nearby.
When tempering occurs, please replace it with a new product.
installhoseNever touch it with oil to prevent natural fire.
When reinstalling the hose, cut off the end of the hose from a distance greater than 3 centimeters.
Attention
Please do not use for purposes other than quick fluid connections.
Insert the hose firmly into the base of the interface and secure it with a hose strap or nut.
To prevent moisture retention, it should be stored indoors.
Do not use hoses with cracks to prevent leakage and detachment.
Before use, a leak check should be conducted. If there is a leak, it should be immediately stopped and replaced with a new product.
The gas welding gun valve should be confirmed to be closed before connecting.
Attention should be paid to using welding equipment for a period of time, and joint and pipeline safety inspections should be carried out to check for any air leaks.
Gas-liquid co-processing
Mainly used for piping of ion cooling devices, brewing devices, cutting oil piping of working machines, and car washing machines. By simple lever operation connection, liquids, gases, powders, etc. can be transported. The main body material, size, and installation shape are diverse and abundant.
Precautions for use:
Warning
Please do not use for fluids other than the applicable fluid.
Do not exceed the maximum operating pressure when using.
Do not use outside the temperature range to prevent wear or leakage of sealing materials.
Do not disassemble
Attention
Please use external threads with controlled threadssealing material。
When installing, do not exceed the maximum torque to prevent damage.
Please do not use for purposes other than quick connectors.
Please do not connect with quick fluid couplings produced by other companies.
Do not manually strike, bend, or stretch to prevent damage.
Do not use in areas mixed with metal powder or sand dust to prevent poor performance or leakage.
Attaching debris can cause poor performance or leakage.
A brake valve must be installed before the quick connector.
Please do not use it as a hinge joint.
If used for machines with vibration and impact, it will cause a decrease in durability.
Steel and iron quick couplings should not be used with water or ethylene glycol-based media. The zinc coating on the surface will dissolve.
The fluid used is a clean fluid filtered through a filter.
The "O" sealing ring must always maintain an oil content state during use.
Hydraulic
Mainly. The main body material should be made of metal that can withstand vibration and impact. A wide variety of sizes and installation shapes are available.
Precautions for use
Warning
Please do not use for fluids other than the applicable fluid.
Do not exceed the maximum operating pressure limit of the quick change connector when using it.
Do not use outside the temperature range to prevent wear or leakage of sealing materials.
Do not disassemble when there is oil pressure passing through
Attention
The external threads of the control thread should use thread specific sealing materials.
When installing, do not exceed the maximum torque to prevent damage.
Please do not use for purposes other than quick connectors.
Please do not connect with quick fluid couplings produced by other companies.
Do not manually strike, bend, or stretch to prevent damage.
Do not use in areas mixed with metal powder or sand dust to prevent poor performance or leakage.
Attaching debris can cause poor performance or leakage.
A brake valve must be installed before the quick connector.
Please do not use it as a hinge joint.
If used for machines with vibration and impact, it may cause a decrease in durability.
Do not use water or ethylene glycol-based media. These substances will cause the zinc coating on the surface to dissolve.
The fluid used must be a clean fluid filtered through a filter.
The "O" sealing ring must always maintain an oil content state during use.
The flow velocity of the fluid should be kept below 8m/s during use.
Refer to the concluding section of this notice to confirm the suitable sealing and main body materials for using fluids.
Inert gases
To be used for vacuum piping and compressor pressure testing. Both the sleeve and plug have built-in automatic switch valves suitable for vacuum applications, which can maintain a vacuum degree of 1.3 × 10Pa when in the separated state.
Precautions for use:
Warning
Do not exceed the maximum operating pressure limit when using.
Do not use outside the temperature range to prevent wear or leakage of sealing materials.
Do not manually strike, bend, or stretch to prevent damage.
Please do not connect or separate under pressure or residual pressure.
Please do not disassemble.
Attention
Please use sealing material for external threads with controlled threads.
Do not manually strike, bend, or stretch to prevent damage.
Please do not use for fluids other than the applicable fluid.
Please do not use for purposes other than quick connectors.
Do not connect with quick fluid couplings produced by other companies.
Do not use in areas mixed with metal powder or sand dust to prevent poor performance or leakage.
Attaching debris can cause poor performance or leakage.
A brake valve must be installed before the quick connector.
Please do not use it as a hinge joint.
If used for machines with vibration and impact, it will cause a decrease in durability.
Cold water and warm oil
Mainly used for universal mold interfaces. Thoroughly simplify the operation of mold exchange, enhance rust prevention function, and diversify the types.
Precautions for use:
Attention
Please do not use for fluids other than the applicable fluid.
Do not exceed the maximum operating pressure limit when using.
Do not use outside the temperature range to prevent wear or leakage of sealing materials.
Do not manually strike, bend, or stretch to prevent damage.
Do not use in areas mixed with metal powder or sand dust to prevent poor performance or leakage.
When installing threaded products, do not exceed the maximum tightening torque to prevent damage.
Do not use hoses with cracks to prevent leakage or detachment.
If used for machines with vibration and impact, it will cause a decrease in durability.
The fluid used must be a clean fluid filtered through a filter.
Do not disassemble the quick connector.
Semiconductor
Mainly used in semiconductor and fluororesin semiconductor production equipment and devices. The main material should be corrosion-resistant metal or injection moldedfluororesinAll resin products made of PFA.
Precautions for use:
Attention
Conduct a dissolution test on the sealing material of the fluid to confirm if the material is suitable.
Please use PTFE sealing tape for the external threads of the control thread.
Do not exceed the maximum tightening torque when installing threads to prevent damage.
To reduce friction (insertion load) and protect the O-ring during insertion, the fluid or pure water can be applied to the O-ring or quick connector (the folds of the O-ring).
When separating, due to the small amount of fluid flowing out, compressed air can be used to discharge and separate the fluid inside the quick connector to prevent danger.
Please do not use it as a hinge joint.
Do not use it for purposes other than quick-connect fluid couplings.
Do not manually strike, bend, or stretch to prevent damage.
Please do not apply pressure when using a single casing or quick connector to prevent the valve from flying out.
When used individually, a designated dust cover must be installed.
Do not disassemble the quick connector.
Structural classification
Opening and closing at both ends
When not connected: When the collar of the parent body moves to the other end, the stainless steel ball automatically rolls outward, and the sub body is disconnected due to the joint action of the parent body and the sub body valve spring force. The valves of the sub body and the parent body are closed respectively, instantly blocking fluid flow.
When connecting: When the sub body is inserted into the mother body, the collar returns to its original position under the action of the spring, and the steel ball rolls to lock the sub body tightly connected. At the same time, the valves of the mother body and the sub body push each other open, allowing fluid flow. The O-ring can completely block fluid leakage.
Open at both ends
Not linked: When the collar of the parent body is pushed to the other end, the steel ball automatically rolls outward, so the daughter body is removed; Due to the absence of valves in both the daughter and mother bodies, fluid flows outward.
When linking: When the sub body is inserted into the mother body, the collar is pushed to the previous position by the force of its spring, causing the steel ball to lock and fluid to flow. The O-ring in it prevents liquid leakage
Single-channel opening and closing
Not linked: When the collar of the parent body moves to the other end, the stainless steel ball automatically rolls outward, and the daughter body is bounced open by the reaction force of the valve spring, and the valve can automatically close to block fluid flow.
When connecting: When the sub body is inserted into the side of the mother body with a collar, the valve is opened, causing fluid flow. The gasket is pushed back to its original position by the force of the spring, and the stainless steel ball locks to ensure the sub/mother body connection. The gasket inside can completely block fluid leakage.
Function
Exchange function: Auxiliary devices for pneumatic, hydraulic tools, cylinders, hydraulic cylinders, and metal mold related machinery.
Maintenance function: Maintenance and upkeep of cooling devices for computers and oil cylinders for die-casting machines.
Testing function: Testing for vacuum, pressure resistance, leakage, operation, etc.
Conveying function: Conveying, transporting, and conducting solid materials such as bolts and nuts.
Filling function: inert gas, nitrogen PG、 Carbonic acid.
Connection function: Fixed components for fishing rods and compact laser discs, connection for mobile operations, and for purposes other than fluid transportation.
function
1. Time and effort saving: When disconnecting and connecting oil circuits through quick couplings, the action is simple, saving time and manpower.
2. Fuel saving: When the oil circuit is broken, the one-way valve on the quick connector can seal the oil circuit, preventing oil from flowing out and avoiding loss of oil and pressure.
3. Environmental protection: When the quick connector is broken or connected, the oil will not leak, protecting the environment.
4. Equipment is divided into small parts for easy transportation: Large equipment or hydraulic tools that require portability can be disassembled and transported using quick couplings, and then assembled and used at the destination.
5. Economy: All of the above advantages have created economic value for customers.
Selected
1. The type and temperature of the fluid (please select the appropriate type and temperature of the fluid, the material of the body, and the quick connector of the sealing material)
The suitable body material and sealing material vary depending on the fluid. For example, the quick connector is made of air. I recommend steel, but if it's water, choose brass or stainless steel.
2. The pressure of the liquid (please select a quick connector with pressure resistance suitable for the fluid pressure)
The pressure of the fluid is also the key to selecting a quick connector. The quick couplings used for hydraulic pressure are serialized between 5.0Mpa (51kgf/cm²) and 68.6Mpa (700kgf/cm²), and the structure of the quick couplings is also different according to their pressure resistance characteristics.
3. Construction of Automatic Valve (Please select a quick connector suitable for piping purposes)
For the construction of valves, there are two-way switch type, one-way switch type, and two-way open type. Due to the presence of fluid flowing out of the piping during separation, except for the two-way switch type. So please pay attention.
4. The usage environment of the quick connector (please select a quick connector with a suitable construction and material for the usage environment)
Consider selecting the type, material, and sealing material of the quick connector based on the humidity conditions, dust conditions, and easily corrosive usage environment.
5. Confirm that the selected quick connector thread should be consistent
In the process of using products from different brands, it is best to use the same brand's female and male heads together. If cross use is necessary, it is best to consult the technical personnel of the product supplier before use and confirm before use.
6. Installation shape and size (please order the product after determining the final shape and size)
Please determine the model and material of the quick connector, and specify the assembly shape and size corresponding to the piping characteristics. Please note that the size is related to the fluid flow rate.
Structural diagram
quick connectorIncluding a female connector mother body, with a through-hole on the mother body, and a steel ball embedded in the through-hole; A male joint column with a groove on its surface; One card sleeve; The female joint matrix and male joint cylinder are sealed and matched, and the steel ball on the matrix is inserted into the groove on the surface of the cylinder; The card sleeve is set on the outer surface of the female joint female body, characterized in that it further comprises a pull sleeve, which is set on the surface of the male joint column and connected to the card sleeve on the female joint with its internal thread.
